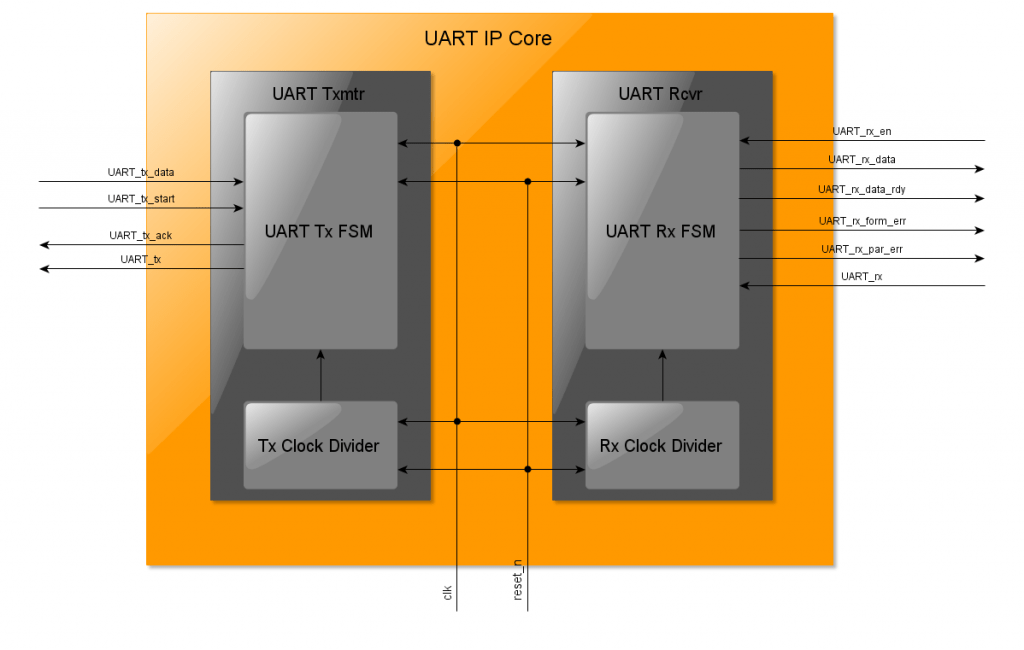

UART DO-254 IP Core

The Universal Asynchronous Receiver/Transmitter (UART) is a hardware device that translates data between parallel and serial forms. UARTs are commonly used in conjunction with communication standards such as TIA (formerly EIA) RS-232, RS-422 or RS-485. The universal designation indicates that the data format and transmission speeds are configurable. The electric signaling levels and methods (such as differential signaling etc.) are handled by a driver circuit external to the UART.

The UART IP Core has been developed to DAL A according to the DO-254 / ED-80 and is accompanied by a Certification Kit. For lower DAL levels reduced documentation sets are available. The core is also available as a netlist for DAL D or projects not needing the full RTL source.

UART Key Features:

Design Assurance Level A according to RTCA DO-254/ED-80 (April, 2000)
Configurable baud rate, number of data bits, parity and stop bits.
Fully deterministic handshake interface that allows easy handling of reception/transmission requests
Single clock domain fully synchronous design
Interface to standard RS-232 drivers, so it can be used without modification in standard hardware
Simple interface to user’s logic
TMR coded for SEU immunity (optional)
Technology independent (can be synthesized to any FPGA/CPLD vendor)

Implementation Details

Unless otherwise specified all the runs have been performed with the default options of the respective tool. Register placement on the IO has been disabled.

No constraints were added, so the results listed under the column “Maximum frequency of operation” are the worst case scenario (no multicycle, false paths, etc. defined).

The results are provided for an UART Core with the following configuration generics (see Table 1):

‘g_ASYNC_INPUT’ – TRUE
‘g_CLOCK_DIVIDER’ – 139
‘g_DATA_WIDTH’ – 8
‘g_PARITY_ENABLE’ – ‘1’
‘g_ODD_PARITY’ – ‘0’
‘g_2_STOP_BITS’ – ‘1’

and without TMR (Triple Module Redundancy), if TMR is used the number of registers will be triplicated, the combinatorial logic will also increase and there might be a penalty on the maximum ‘clk’ frequency.

ACTEL / MICROSEMI

FPGA Type	*Maximum ‘clk‘ Frequency*	Logic Modules (CORE)
ProASIC3 (A3P015 68QFN I Std)	132 MHz	163
IGLOO (AGL030V5 100VQPF I Std)	127 MHz	163
Fusion (AFS090 180QFN I Std)	132 MHz	163
Axcelerator (RTAX250S 208CQFP Mil Std)	141 MHz	SEQUENTIAL (R-cells): 63 COMB (C-cells): 74

ALTERA

FPGA Type	Maximum ‘clk’ Frequency	Flip-Flops	ALUTs	ALMs	Logic Cells
MAX II (EPM240F100I5)	127 MHz	57	–	–	83
Cyclone III (EP3C5E144I7)	> 340 MHz	57	–	–	83
Stratix II (EP2S60F484I4)	> 420 MHz	59	66	42	–
Stratix III (EP3SE110F780I3)	> 550 MHz	57	63	41	–
Stratix IV (EP4SGX70HF35C2)	> 670 MHz	58	64	41	–

XILINX

FPGA Type	*Maximum ‘clk‘ Frequency*	Flip-Flops	4-LUTs	Slices	Macrocells
CoolRunnerII (XC2C128-6-TQ144)	126 MHz	57	–	–	58
Spartan3 (XC3S50-4PQ208)	189 MHz	56	91	53	–
Virtex2 (XC2V40-4FG256)	174 MHz	56	90	53	–
Virtex4 (XC4VLX15-12SF363)	> 460 MHz	56	92	53	–
Virtex5 (XC5VLX30-3FF324)	> 390 MHz	56	–	35	–
