ARINC 664 (AFDX) End System DO-254 IP Core

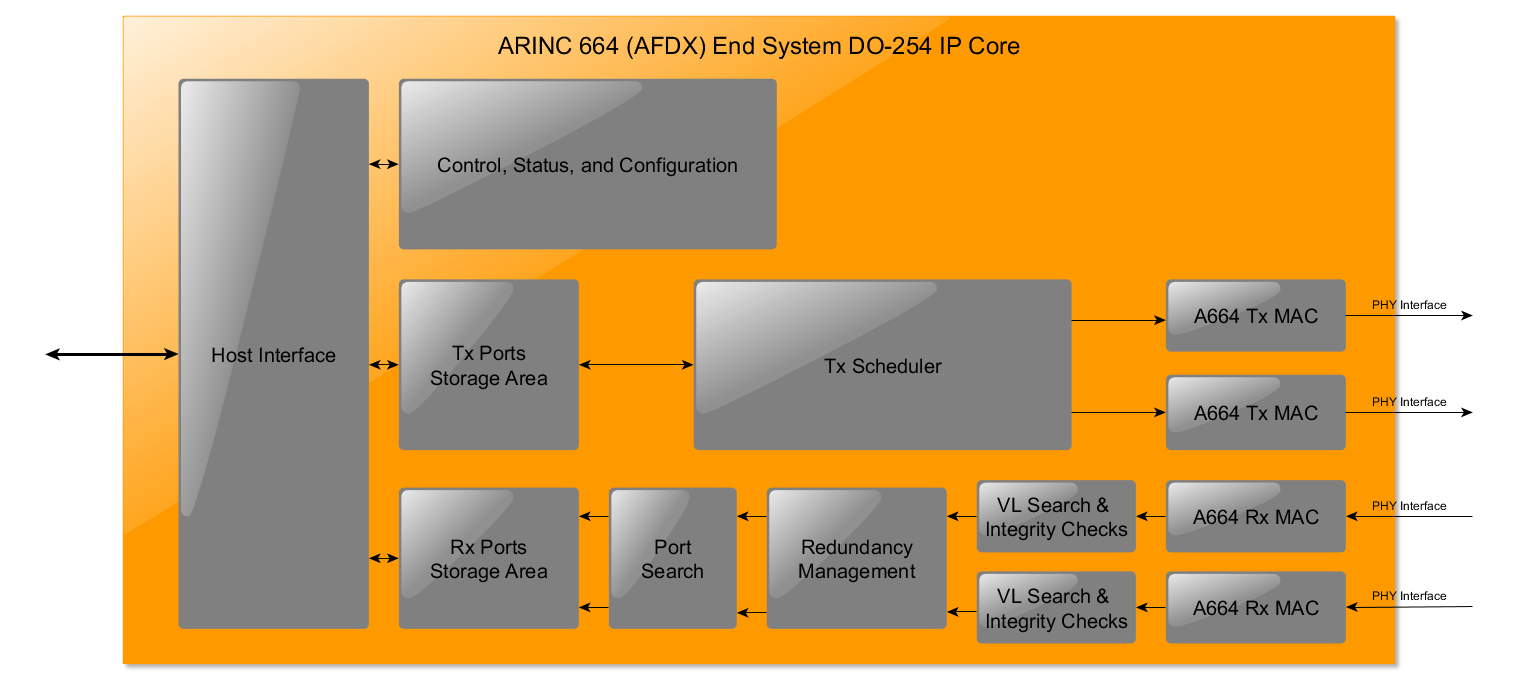

The ARINC 664 (AFDX) End System DO-254 IP Core (A664 ES IP) implements an AFDX End System as specified in ARINC 664 Part 7 “Avionics Full-Duplex Switched Ethernet (AFDX) Network”.
The A664 ES IP supports MII, RMII, GMII or SGMII as PHY interfaces. Therefore, it is able to transmit and receive at 10 Mbps, 100 Mbps or 1000 Mbps, making full usage of the bandwidth.
The communication with the host is done through a Host Interface that allows the host to access the status, control and configuration, and to read/write messages using burst transfers.
The A664 ES IP uses the internal memory for buffering the transmitted and received messages (no external memory is needed). The size of the buffers depends on the resources available in the target device.
The A664 ES IP is accompanied by a set tools to generate the AFDX ES configuration.
The A664 ES IP has been developed to DAL A according to the DO-254 / ED-80 and is accompanied by a Certification Kit.
Key Features:
- Compliant with ARINC 664 Part 7
- Configurable bit rate (1000 Mb/s, 100 Mb/s or 10 Mb/s)
- Supports MII, RMII, GMII or SGMII PHY interfaces
- Simple host interface for status, control and configuration
- Simple host interface for message transfers in burst
- Includes configuration generation tools
- DAL A according to DO-254 / ED-80
- Optional radiation-hardened version
